Accessories

Rail Mount Cable Dropout

This side mounted cable drop out offers ultimate support for the high capacity data center cable runs while not compromising the cable tray itself. By bolting onto the universal rail system of the Mega Snake, the side mount unit allows for simple cable egress directly off the side of the tray without having to make any cuts or modifications preserving the strength and integrity of the tray. Ideally suited for supporting and protecting copper and fiber optic cables as they enter and exit the tray. Available in 12″, 18″, and 24″ sizes, the cable dropout comes in standard galvanized, white or black powder coat or in a custom color to match any data center. Drop out bolts directly to the universal rail system of the 801 Series Mega Snake which allows for easy moves, adds or changes when needed. Provides a smooth surface for horizontal cable direction changes with a 180° bend which ensures cables do not have any potential pinch points or kinks.

Mega Snake Under Tray Pathway System

Unique applications require unique solutions. In hospital environments, there is a need for mission critical cable pathways apart from the standard data cabling infrastructure, typically nurse call, alarm and security cabling. This under tray add on accessory provides up to 8 separate color coded cable pathways, simple to install and available with customer specific color coding.

Universal Tray Connector Bolt

Provides both a mechanical and a bonded electrical connection when joining tray sections to one another.

• One CB-10 required per connection.

Universal Inline Connector Bolt

Provides both a mechanical and bonded electrical connection when joining tray sections to one another.

• One CB-12 required per connection
• Set screws max torque = 230 in-lbs

201 to 501 Series Connection Adapter

Used to adapt 201 series to 501 series trays.

Universal TEE Intersection for 201, 401, 454 and 501 Series

Installed as TEE component for the Snake 201, 401, 454 and 501 series trays.

Rack Mount Bracket for 201 Series

Used to mount single pocket 201 series Snake Tray to the tops of standard equipment racks via a built-in clamping feature. No additional hardware required. RBN-201-90 mounts to the tray perpendicularly. Clamp to attach to tray included.

Beam Clamp for 3/8″ Threaded Rod for 201 and 454 Series

Used to attach 3/8"-16 threaded rod to a beam.

Pedestal Mount Bracket for 201 Series

Used to attach single pocket 201 series tray to the floor pedestals utilized in the construction of raised access floors.

Cabinet Mount Bracket for 201 Series Single

Used to attach single pocket 201 series tray to the tops of equipment cabinets. Clamp to attach to tray included.

Cabinet Mount Bracket for 201 Series Double

Used to mount double pocket 201 series double tray to the tops of equipment cabinets. Clamp to attach to tray included.

Cable Drop-Out Waterfall for 201, 401 and 501 Series

Provides a smooth transition for cables when exiting the tray. Maintains a consistent 4" radius eliminating kinked cables. Easily attaches to tray with cable ties.

Seismic Bracing Kits with Crimp Tool & Cutter

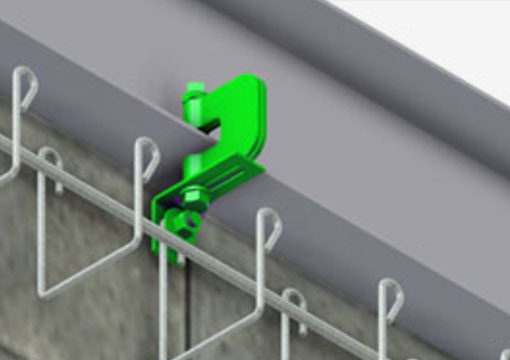

I-Beam Clamp

Bracket for 501 Series Tray to I-Beam.

Threaded Rod

Pre-cut and pre-chased threaded rod for overhead tray installations. All rods are 3/8"-16 10/24 high strength steel as per ASTM A36 and available in 1', 2', 3', 4' 6', and 8' lengths. Rods are inserted through the patented Snake Eyes and secured with two 3/8" hex nuts and one flat washer. No additional mounting accessories are necessary.

Concrete Wedge Anchor

• Anchor diameter equals hole diameter
• Comes complete with nuts and washers ready for use
• Collar expander offers 360° contact with masonry
• Projections on collar immediately grip concrete

Concrete Anchor

Used to anchor trays and components to concrete. (1/4" hole)

Hanger Bracket for Threaded Rod Suspension

Hanger bracket for powder-actuated fastening. Design allows for easy installation using any 8 mm power actuated fastening system. Available for both steel and concrete. The New, Versatile Hanger that Simplifies Threaded Rod Suspension.

Attachment Hardware

Snake Nut™ Threaded Rod Fastener

This innovative fastener eliminates the labor intensive need to hand thread hex nuts up a threaded rod. Simply insert the Snake Nut anywhere on the threaded rod and tighten into place with a set screw. Once locked into place, Snake Nut has been tested to hold up to 6,800 pounds.

Patch Panel Pedestal Mount Kit

Allows for structured cabling to be mounted below the raised floor in a code compliant data center. 4 RU capabilities.

Corner Bracket

Creates a radius for L, TEE, or X-shaped intersections of Cable Runway formed when two or more pieces of Cable Runway are connected together with the Junction-Splice Kit.

Universal Crossing Grid for Snake Canyon

Install Snake Canyon Crossing Grids where 4-way intersections are necessary. No additional tools or mounting hardware required to complete installation.

Size Adapters

Transition from one size Mega Snake to another.

Hinged Splice Plates

Each vertical directional change requires one kit.

Splice Kit

Splice kit maintains a continuous electrical and mechanical bond throughout the Mega Snake system.

Divider Grid

Divides cable tray pathway.

Snake Nut™ Threaded Rod Fastener

This innovative fastener eliminates the labor intensive need to hand thread hex nuts up a threaded rod. Simply insert the Snake Nut anywhere on the threaded rod and tighten into place with a set screw. Once locked into place, Snake Nut has been tested to hold up to 6,800 pounds.

Snake Suspenders – Wire Rope Suspension Kit

This amazing proprietary system allows for the Mega Snake Series Cable Tray to be suspended via wire rope. The components attach directly to Mega Snake’s equipment mounting rail system. Once engaged, the Mega Snake height can be adjusted at will and without tools. It can be readjusted anytime during the installation process. Snake Suspenders add on gimbal kit can vector the wire rope in any direction for seismic cross bracing.

XX DENOTES LENGTH

Center Support

Bracket used when access to either side is required.

Note: 12" Mega Snake has built-in center support.

Wall Bracket

Double Wall Bracket

Configurations to accommodate different trays on top and bottom available.

X DENOTES TRAY SIZE (DEPTH AND WIDTH)

Cabinet Bracket

Cabinet Bracket used to mount 801 series tray to the top of Data Cabinets. Mounting hardware not included.

X DENOTES TRAY SIZE (DEPTH AND WIDTH)
CUSTOM CONFIGURATIONS AVAILABLE.

Cable Drop Out

Side Mount Cable Dropout

Side mounted drop out designed to enter/exit cable through side rail on 801 series tray.

In-Line Cable Dropout

* Required for 18" Tray

In-line cable drop out designed to enter/exit cable through a center section of 801 series tray.

Conduit Plate Side Mount

Securely adapts a single conduit to the side of the 801 series tray.

Tray Inserts and Covers

Flat inserts are available for all fittings, 90°, TEE's and 4-way intersections

In 60" lengths, two inserts per tray required.

Conduit Adapter

*ADDITIONAL CONFIGURATIONS AVAILABLE.

In-Line Patch Panel Adapter

19″ Patch Panel bracket attaches to side rail on 801 series tray.

CUSTOM SIZES AVAILABLE.

Fiber Optic Turnout Module

Fiber optic exit designed to attach to the 801 series tray. Designed to protect cable and control bend radius.

Power Distribution Module

The Power Distribution Module is the cornerstone of the Power Mega Snake power distribution system. It is available empty or loaded with customer specified NEMA receptacles. It is also available pre-wired with MC cables to be carried by the Mega Snake and terminated at the electrical panel.

XX DENOTES CUSTOMER SPECIFIED POWER REQUIREMENTS. Call the Snake tray engineering team to assist you with the power distribution configuration and part numbers.

Termination Kit

Mega Snake support for 90° wall, floor and ceiling terminations.

Mega Snake® Air Separator

This auxiliary component attaches directly to the Mega Snake’s mounting rail to provide code compliant separation between high ampacity conductors. This separation system provides the spacing that will allow the full ampacity rating of cables in accordance with the NEC. Can be configured to the customer’s specific cable schedule.

Divider Fence for Snake Canyon

Divides Snake Canyon modules into separate cable pathways. Easy “Snap-in” design. Additional sizes available.

Transition Component

Transition Components provide continuous support for cable when transitioning from two different depth Snake Canyon modules.

Snake Canyon Cable Drop Out

Cable drop out for Snake Canyon. Continuous drop out for both straight sections and turning components. Provides a smooth transition for cables when exiting the tray. Maintains a consistent 4" radius eliminating kinked cables. Easily attaches to tray with cable ties.

Cam-Loc Turning Component Bridge Support

Install Snake Canyon Crossing Grids where 4-way intersections are necessary. No additional tools or mounting hardware required to complete installation.

X DENOTES DEPTH

Snake Canyon Bridge Support

Used to create a support bridge for turning components, transition components and/or crossing grids. Interfaces with adjacent snake canyon baskets.

Snake Canyon Pedestal Mount Bridge

Used to create a support bridge for Turning Components, Transition Components and/or Crossing Grids. Interfaces with adjacent floor pedestals.

In-Line Locking Splice Plates

• Standard 4-hole pattern
• Furnished in pairs, with hardware
• One pair including hardware provided with each section
• For field installation drill 13/32” hole

Expansion Splice Plates

• Expansion plates allow for one inch expansion or contraction of the cable tray, or where expansion joints occur in the supporting structure.
• Furnished in pairs with hardware.
• Bonding Jumpers are required on each side-rail (order separately).

Vertical Adjustable Splice Plates

• Provides for changes in elevation that do not conform to standard vertical fittings
• Furnished in pairs hardware
• Bonding Jumper not required

Cable Drop-Out

• These components provide a rounded surface to protect cable as it exits from the cable tray.
• Hardware is included

Tray Divider, Straight Section

• These components create a vertical barrier when installed into the cable tray straight section
• Furnished with three #10 x ½” zinc plated self-drilling screws
• Standard length is 60″ (5 ft.)
• Sold individually

Tray Divider, Horizontal Bend

• Horizontal Bend Barriers are flexible in order to conform to any horizontal radius
• Cut to length
• Furnished with three #10 x ½” zinc plated self-drilling screws
• Standard length is 60″ (5 ft.)
• Sold individually

End Cap

• Creates a barrier at the terminal end on the cable tray run
• Furnished with installation hardware
• Sold Individually

X DENOTES WIDTH OF TRAY

Bonding Jumper

• Use at each expansion splice and where the cable tray is not mechanically/electrically continuous to ground
• Installation hardware included
• Bonding jumper is 16″ long
• Sold individually

Cable Tray Clamp

*Hardware
• (2) Tray Clamps
• (2) Hex Bolts
• (2) Strut Nuts

Threaded Rod

• Bonding Jumper not required.

Loading based on safety factor 5. Standard Finish: Zinc plated

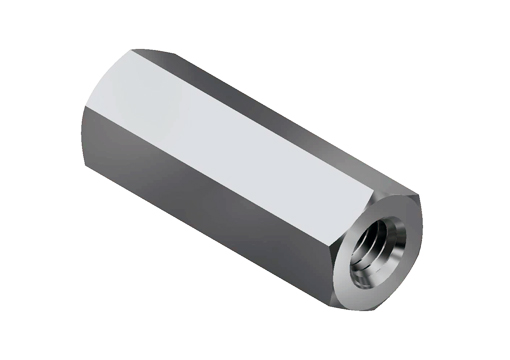

Rod Coupling

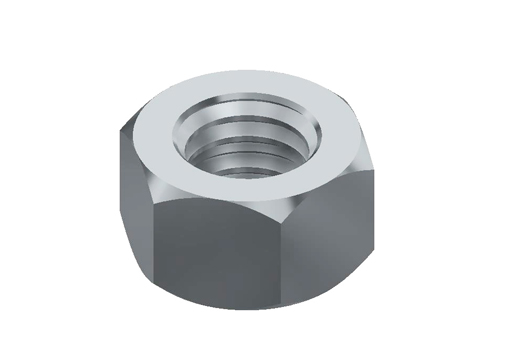

Nuts

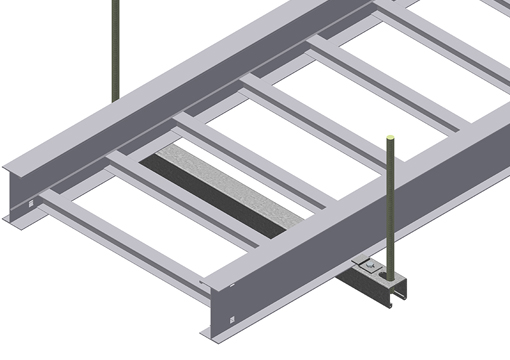

Trapeze Support Kit

• Provides the necessary components for a single trapeze support in one kit. These kits are available in pre-galvanized steel with zinc plated hardware
• The support bar provides convenient pre-punched slots, eliminating the need for field drilling
• The entire kit is sealed in a plastic bag and boxed with the channel, which is pre-cut to the appropriate length as
shown in the chart
• Designed for use with ½” threaded rod (order rod separately)

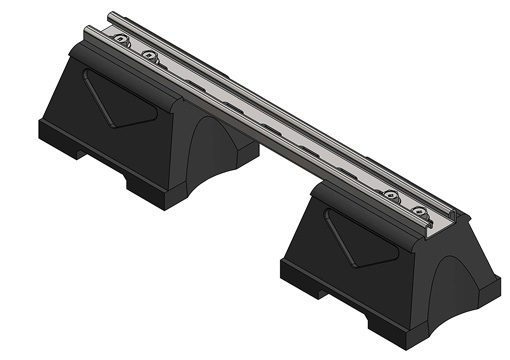

Rooftop Support Bases with Channel

• Designed for use as a rooftop support for cable tray
• Each support has rubberized pads on the underside of each leg to minimize any chaffing of the existing rooftop
• Can be used with any of Snake Tray cable tray clamps and guides
• Ultimate Load Capacity: 1,000 lbs. (uniform load)

Center Hung Tray Support

• Center Hung Cable Tray Support allows cable to be installed from both sides
• Eliminates costly cable pulling and field cutting of cable tray supports.  Labor costs are drastically reduced
• Required hardware and threaded rod material for trapeze  assemblies are reduced by 50%
• Designed for use with ½” threaded rod (order rod separately)
• Use with all aluminum and steel cable trays up to 24″ in width
• Load capacity is 700 lbs. per support.  Safety factor of 3
• Eccentric loading is not to exceed a 60% vs. 40% load  differential
• The maximum recommended unsupported span length is  144″/12 ft. (3.66m)
• Furnished with installation hardware

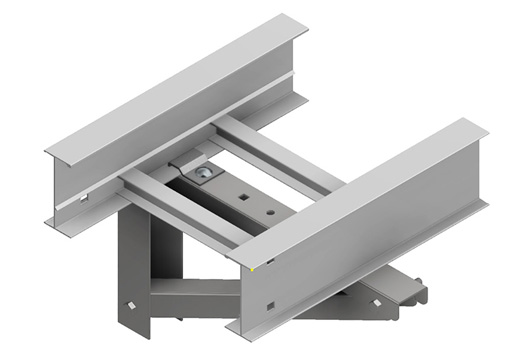

Wall Bracket

• Wall bracket allows for the cable tray to be attached to a  vertical surface.
• Constructed from steel, this bracket will support the tray as well  as the load.
• Wall anchors MUST be designed to handle a shear load of the bracket as well as the load with a safety factor of 2.5.   Eccentric loading is not to exceed 60% vs. 40% load differential.
• 24″, 30″ and 36″ wall mounted tray support with gusset

Vertical Hanger Splice Plates

• Design Load is 1500#/pair Safety factor of 2.5.
• Furnished in pairs.
• Designed for use with either ½” threaded rod. (Order rod separately).

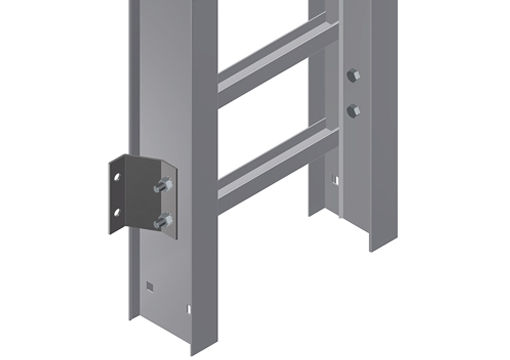

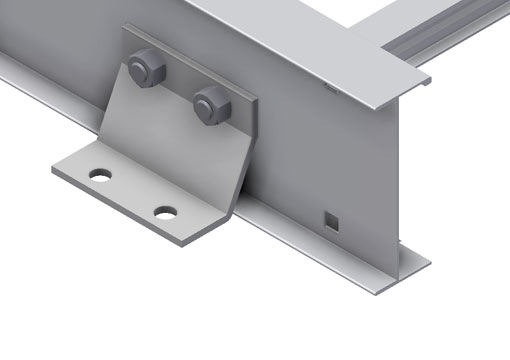

Heavy Duty Hold-Down Bracket

• For 4″ or 6″ Aluminum Cable Tray
• Design load is 4,000#/pair.
• Four bolt attachment.
• Cable Tray attachment hardware is included. Hardware to  attach the bracket to the substrate sold separately.
• Recommended for support of vertical pathways.

Rapid Ship Cable Runway Kit with Brackets

The 5′ (1524 mm) length of this cable runway is designed to meet UPS requirements without additional charges. The 5′ (1524 mm) length of this cable runway is designed to meet UPS requirements without additional charges.

Kit consist of:
• (1) 5′ sections of cable runway
• (1) Wall Bracket
• (1) Rack Bracket
• Also available in 18″ and 24″ widths.

Butt-Splice Kit

Connect two sections of runway end-to-end.
Kit consists of:
• (4) slice plates
• (2) 3/8″-16 trimmed head bolts
• (2) 3/8″-16 hex nuts
• (2) 3/8″ split lock washers

Junction-Splice Kit

Connect two sections of runway end-to-end.

Kit consists of:
• (4) Slice plates
• (2) 3/8″-16 trimmed head bolts
• (2) 3/8″-16 hex nuts
• (2) 3/8″ split lock washers

Threaded Rod Ceiling Mounts

Secures threaded rod to Cable Runway. Sold in pairs, hardware not included.

Ceiling Mount Kit

Kit consist of: (Drawing Shows 2 Kits)

• (1) 6 ft 3/8″ threaded rod
• (1) Ceiling mount bracket
• (1) CM 610-38-TRK
• (2) 3/8″-Hex nuts
• (2) 3/8″- flat washers

Wall Termination Kit

Kit consist of:

• (1) wall angle
• (2) 5/16″-18″ x 2-¼” J-bolts
• (2) 5/16″-18 hex nuts
• (2) 5/16″- lock washers

Rack Termination Kit

Rack Bracket

• Universal Mounting plate for data racks
• Installs in both orientations
• Comes with all necessary mounting hardware
• Powder coat finish available

Kit consist of:
• (4) 5/16″-18″ x 2-¼” J-bolts
• (4) 5/16″-18 hex nuts

Cable Runway Rack Termination Kit

Rack Bracket
• Universal Mounting plate for  data racks
• Installs in both orientations
• Comes with all necessary  mounting hardware

Kit consist of:Kit consist of:
• (2) 45º outside clamps
• (2) Inside edge clamps
• (2) 3/8″-16 trimmed round head, square neck bolts
• (2) 3/8″-16 hex nuts and lock washers

Elevation Kit

Supports cable runway above a continuous row of racks or cabinets of varying heights and provides additional space between the tops of the racks or cabinets and the cable runway.

Features
• Multiple ranges of incremental elevation
• Can be mounted perpendicular or parallel
• Rack kit includes a single pair of brackets and assembly hardware
• Rack kits attaches to the rack with a mounting plate (sold separately)
• Cabinet kits include two pairs of brackets and assembly hardware
• Cabinet to bracket attachment hardware NOT included

Radius Drop Out

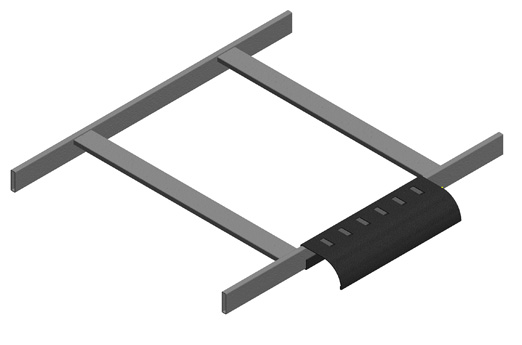

Side Mount Radius Drop Out

Patch Panel Adapter

CUSTOM SIZES AVAILABLE.

Power Distribution Module

The Power Distribution Module is the cornerstone of the Cable Runway power distribution system. It is available empty, or loaded with customer specified NEMA receptacles. It is also available pre-wired with MC cables to be carried by the Cable Runway and terminated at the electrical panel.

XX DENOTES CUSTOMER SPECIFIED POWER REQUIREMENTS. Call the Snake tray engineering team to assist you with the power distribution configuration and part numbers.

Bonding Jumper

• Use at each expansion splice and where the cable tray is not  mechanically/electrically continuous to ground
• Installation hardware included
• Bonding jumper is 16″ long
• Sold individually

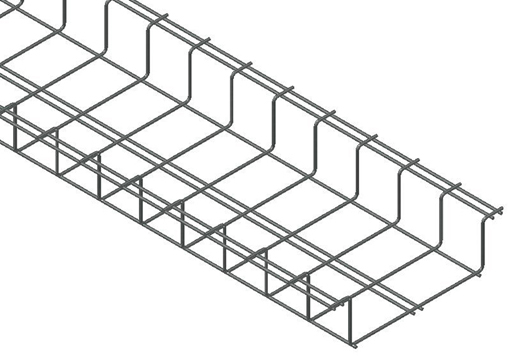

Straight Sections

Part Number	Loading Dimensions	Cable Capacity	Cut Sheet	BIM
CM 801-2-6-10	2" x 6" x 10'	125
CM 801-4-6-10	4" x 6" x 10'	250
CM 801-6-6-10	6" x 6" x 10'	375
CM 801-2-8-10	2" x 8" x 10'	165
CM 801-4-8-10	4" x 8" x 10'	330
CM 801-6-8-10	6" x 8" x 10'	490
CM 801-2-12-10	2" x 12" x 10'	250
CM 801-4-12-10	4" x 12" x 10'	490
CM 801-6-12-10	6" x 12" x 10'	735
CM 801-2-18-10	2" x 18" x 10'	375
CM 801-4-18-10	4" x 18" x 10'	735
CM 801-6-18-10	6" x 18" x 10'	1,100
CM 801-2-24-10	2" x 24" x 10'	490
CM 801-4-24-10	4" x 24" x 10'	980
CM 801-6-24-10	6" x 24" x 10'	1,470

FOR BEST RESULTS IT IS RECOMMENDED THAT MEGA SNAKE BE SUPPORTED EVERY (5) FIVE FEET

THESE PRODUCTS ARE MANUFACTURED WITH CENTER SUPPORT RAIL FOR CENTER HANGING OPTIONS.

CABLE CAPACITY BASED ON 50% FILL AS PER NEC ARTICLE 392.9B 0.25 OD
FINISHES: MECHANICALLY APPLIED GALVANIZED FINISH (G), STAINLESS STEEL (SS), POWDER COATED (PC)

30° Turns

* THESE PRODUCTS ARE MANUFACTURED WITH CENTER SUPPORT RAIL.

CABLE CAPACITY BASED ON 50% FILL AS PER NEC ARTICLE 392.9B 0.25 OD
FINISHES: MECHANICALLY APPLIED GALVANIZED FINISH (G), STAINLESS STEEL (SS), POWDER COATED (PC)

45° Turns

Part Number	Part Size	Cut Sheet	BIM
CM 801-2-6-45	2" D x 6" W 45° Turn
CM 801-4-6-45	4" D x 6" W 45° Turn
CM 801-2-12-45 *	2" D x 12" W 45° Turn
CM 801-4-12-45*	4" D x 12" W 45° Turn
CM 801-6-12-45 *	6" D x 12" W 45° Turn
CM 801-2-18-45	2" D x 18" W 45° Turn
CM 801-4-18-45	4" D x 18" W 45° Turn
CM 801-6-18-45	6" D x 18" W 45° Turn
CM 801-2-24-45	2" D x 24" W 45° Turn
CM 801-4-24-45	4" D x 24" W 45° Turn
CM 801-6-24-45	6" D x 24" W 45° Turn

* THESE PRODUCTS ARE MANUFACTURED WITH CENTER SUPPORT RAIL.

CABLE CAPACITY BASED ON 50% FILL AS PER NEC ARTICLE 392.9B 0.25 OD
FINISHES: MECHANICALLY APPLIED GALVANIZED FINISH (G), STAINLESS STEEL (SS), POWDER COATED (PC)

652 Series Snake Way Secured Pathway Tray

Applications:
Galvanized steel 6″ x 6″ x 10′ wire way with a unique opening cover design allows cables to be safely installed along the entire run without pulling on the cable. Additional lengths and profiles are available. NEMA Type 1

Features:Features:
• Large bend radius specifically designed to allow for the installation  of fiber optic  cable. All trays, T’s and crosses come with a 12″ inside radius
• Available with or without knockouts
• Unique hinged flat cover design
• Secure bolt together construction
• Constructed from 16 GA GA galvanized steel with  customer specified powder coat finish available

652 Series Snake Way Secured Pathway 4-Way Component

6″ x 6″ x 6″ x 6″ 4-way component. Constructed from 16 GA galvanized steel, phosphate dipped and powder coated ANSI 61 grey inside and out. Custom colors are available upon request. The curved 12″ radius maintains proper bend radius for all cables especially control and fiber optics. Screwed covers are completely removable and permit total access necessary to lay cables without pulling. NEMA Type 1

652 Series Snake Way Secured Pathway “T” Component

6″ x 6″ x 6″ “T” component. Constructed from 16 GA galvanized steel, phosphate dipped and powder coated ANSI 61 grey inside and out. Custom colors are available upon request. The curved 12″ radius maintains proper bend radius for all cables especially control and fiber optics. Screwed covers are completely removable and permit total access necessary to lay cables without pulling. NEMA Type 1

652 Series Snake Way Secured Pathway 90° Component

6″ x 6″ 90° component. Constructed from 16 GA galvanized steel, phosphate dipped and powder coated ANSI 61 grey inside and out. Custom colors are available upon request. The curved 12″ radius maintains proper bend radius for all cables especially control and fiber optics. Screwed covers are completely removable and permit total access necessary to lay cables without pulling. NEMA Type 1

652 Series Snake Way Secured Pathway 45° Component

6″ x 6″ 45° component. Constructed from 16 GA galvanized steel, phosphate dipped and powder coated ANSI 61 grey inside and out. Custom colors are available upon request. The curved 12″
radius maintains proper bend radius for all cables especially control and fiber optics. Screwed covers are completely removable and permit total access necessary to lay cables without pulling. NEMA Type 1

Universal Cable Runway

Support backbone and horizontal cables in the telecommunications or equipment rooms and cross-connects on racks or cabinets. A wide selection of supports splices and accessories are available.

Features:
• Constructed of rectangular steel tubing for strength and support
• 130 lb/ft maximum load with runway supported every five feet
•  Meets ANSI/TIA/EIA installation guidelines

*MADE TO ORDER SIZES AVAILIABLE

Rapid Ship Cable Runway Kit

The 5′ (1524 mm) length of this cable runway is designed to meet UPS shipping requirements without additional charges.

Kit consist of:
• (2) 5′ sections of cable runway
• (1) Butt Splice Kit
• Also available in 18″ and 24″ widths

Cable Runway Horizontal 90º

Creates a gradual bend in the horizontal plane of Cable Runway. Designed for cabling in conformance with the minimum bend radius requirements (typically 4 times the cable diameter). Made of lightweight tubular steel to fit a standard Cable Runway.

*MADE TO ORDER SIZES AVAILIABLE

Cable Runway Vertical Bend

Creates a gradual bend for inside and outside bends

90° Turns

Part Number	Part Size	Cut Sheet	BIM
CM 801-2-6-90	2" D x 6" W 90° Turn
CM 801-4-6-90	4" D x 6" W 90° Turn
CM 801-2-12-90 *	2" D x 12" W 90° Turn
CM 801-4-12-90 *	4" D x 12" W 90° Turn
CM 801-6-12-90 *	6" D x 12" W 90° Turn
CM 801-2-18-90	2" D x 18" W 90° Turn
CM 801-4-18-90	4" D x 18" W 90° Turn
CM 801-6-18-90	6" D x 18" W 90° Turn
CM 801-2-24-90	2" D x 24" W 90° Turn
CM 801-4-24-90	4" D x 24" W 90° Turn
CM 801-6-24-90	6" D x 24" W 90° Turn

* THESE PRODUCTS ARE MANUFACTURED WITH CENTER SUPPORT RAIL.

CABLE CAPACITY BASED ON 50% FILL AS PER NEC ARTICLE 392.9B 0.25 OD
FINISHES: MECHANICALLY APPLIED GALVANIZED FINISH (G), STAINLESS STEEL (SS), POWDER COATED (PC)

TEE Section

Part Number	Part Size	Cut Sheet	BIM
CM 801-2-6-T	2" D x 6" W TEE Section
CM 801-4-6-T	4" D x 6" W TEE Section
CM 801-2-12-T *	2" D x 12" W TEE Section
CM 801-4-12-T *	4" D x 12" W TEE Section
CM 801-6-12-T *	6" D x 12" W TEE Section
CM 801-2-18-T	2" D x 18" W TEE Section
CM 801-4-18-T	4" D x 18" W TEE Section
CM 801-6-18-T	6" D x 18" W TEE Section
CM 801-2-24-T	2" D x 24" W TEE Section
CM 801-4-24-T	4" D x 24" W TEE Section
CM 801-6-24-T	6" D x 24" W TEE Section

* THESE PRODUCTS ARE MANUFACTURED WITH CENTER SUPPORT RAIL.

CABLE CAPACITY BASED ON 50% FILL AS PER NEC ARTICLE 392.9B 0.25 OD
FINISHES: MECHANICALLY APPLIED GALVANIZED FINISH (G), STAINLESS STEEL (SS), POWDER COATED (PC)

Crossing Grid

Part Number	Part Size	Cut Sheet	BIM
CM 801-2-6-CG	2" D x 6" W 4-Way Crossing Grid
CM 801-4-6-CG	4" D x 6" W 4-Way Crossing Grid
CM 801-2-12-CG *	2" D x 12" W 4-Way Crossing Grid
CM 801-4-12-CG *	4" D x 12" W 4-Way Crossing Grid
CM 801-6-12-CG *	6" D x 12" W 4-Way Crossing Grid
CM 801-2-18-CG	2" D x 18" W 4-Way Crossing Grid
CM 801-4-18-CG	4" D x 18" W 4-Way Crossing Grid
CM 801-6-18-CG	6" D x 18" W 4-Way Crossing Grid
CM 801-2-24-CG	2" D x 24" W 4-Way Crossing Grid
CM 801-4-24-CG	4" D x 24" W 4-Way Crossing Grid
CM 801-6-24-CG	6" D x 24" W 4-Way Crossing Grid

* THESE PRODUCTS ARE MANUFACTURED WITH CENTER SUPPORT RAIL.

CABLE CAPACITY BASED ON 50% FILL AS PER NEC ARTICLE 392.9B 0.25 OD
FINISHES: MECHANICALLY APPLIED GALVANIZED FINISH (G), STAINLESS STEEL (SS), POWDER COATED (PC)

MC Snake Tray Adjustable Pole for Installing MC

Adjustable light weight MC Pole allows easy installation of MC Cable in 701 series MC Tray with out the use of ladders.

MC Snake Tray Double Pocket

MC SNAKE IS DESIGNED TO BE SUPPORTED EVERY FIVE (5) FEET

MC Snake Wall Mount

Hand bendable cable tray designed to secure MC Cable Wall Mount.

MC SNAKE IS DESIGNED TO BE SUPPORTED EVERY FIVE (5) FEET

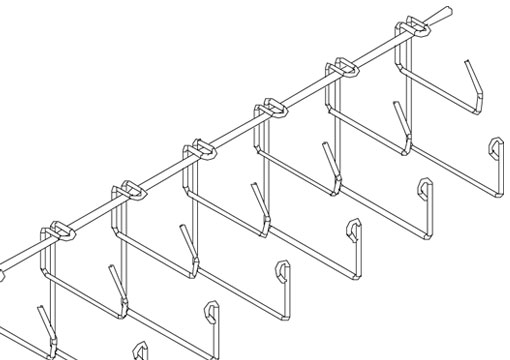

MC Snake Double Tier (Both Data and MC Cables)

Hand bendable cable tray double tier upper level for MC Cable, lower level for data cable.

MC SNAKE IS DESIGNED TO BE SUPPORTED EVERY FIVE (5) FEET

Power Tracks

Modular electrical power distribution tracks.

Interlink

Interlink allows for changes in direction and can easily snake around obstacles under raised floors and workstations.

Feed Module

Feed module delivers power to the snap-together Snake Bus tracks to instantly configure the electrical plan. Available with custom pre-wired feeder cable 1-3 phase with ground and oversized neutral.

Feed Module TEE

Feed Module TEE delivers power to the snap-together Snake Bus tracks in the middle of a run. The TEE allows for tracks to be installed on each side of the module, extending the overall run length. Available with custom pre-wired feeder cable, 1-3 phase with integrated ground and an oversized neutral.

Snake Bus® Current Monitoring System

Snake Bus is available with a current monitoring system that gives facility managers real-time data on current loads.
In addition, the IP addressable module with accompanying software provides facility managers email alerts on current loads, and provides real-time and historical data on power consumption for energy resource planners.

Floor Riser Snake Bus Track

The floor riser is an optional accessory for the Snake Bus system to be used to prevent water submersion in areas where flooding may be an issue.

Floor Riser for Feed Module

The floor riser is an optional accessory for the Snake Bus system to be used to prevent water submersion in areas where flooding may be an issue.

Snake Bus Recessed Floor Box with 3 Independent Protected Circuits

Features:
• Designed to customer requirements with up to 3 independent circuits and 12  “keystone” receptacles for data
• Designed to work in conjunction with 707 Series Snake Bus Power Distribution
• Two separate compartments for data and power
• Steel cover with 2-cable access points and recessed lid will accept carpet

SNAKE TRAY CAN CUSTOM CONFIGURE YOUR MODULES TO FIT YOUR SPECIFIC REQUIREMENTS.

Under Desk Power Module

Applications:
Power module mounts under the work surface. The electrical whip feeds through Snake Air pass through air flow manager in an access floor.

Features:
• Designed to customer specific needs to work with the CM 707 Snake Bus Power Distribution System
• Installs without the need of any fasteners.
• Complete with built-in circuit breaker and Indicator light
• Constructed from 16 GA galvanized steel with customer specified powder coat finish available

Snake Whip Horizontal Rack Mount One Rack Unit

Applications:
These industrial quality rack mount Power Distribution Units (PDU) are built in a wide variety of configurations. Snake Air pass through air flow manager in an access floor.

Features:
• Part of CM 707 Snake Bus Power Distribution System
• 1 RU
• Six NEMA 15 AMP or 20 AMP receptacles
• Circuit breakers protected
• Indicator lights
• Black powder coat

Recessed Data Center Floor Power Reception Point

Applications:
This custom designed unit for our data center customer allows for separate A and B channels of power while keeping airflow segregated under the floor.

Features:
• Accessory for the 707 Snake Bus Power Distribution System
• Individual compartmented 3-Phase protected circuits
• Installed into raised access floors
• Redundant power capabilities
• Two NEMA 530R receptacle, 30 AMP
• Additional configurations available

New Power Module Ideal for Casinos

Snake Tray’s modular power module provides multiple power and data circuits to gaming machines. The plug-and-play system quickly allows for adds, deletions and equipment relocations. UL listed and approved to connect and disconnect while energized (the circuit breaker does not need to be locked). User can disconnect and move an entire cluster of machines with minimal disruption to the gaming floor.

Roof Top Solar Mount (Top Hat)

Snake Tray’s Roof top solar mount for the 407 Solar Snake Tray and the 801 Solar Mega Snake quickly mounts to the roof top either with rubber feet to protect the roof. Roof mount comes with predrilled holes to easily attach cable trays.

Solar Roof Top Mount

Rubber Blocks with Strut.

Mega Snake Covers

FINISH: G90 Galvanized

Universal Ballasted Roof Top Anchor

Snake Tray’s ballasted roof mount anchors use common cement block ballasts to support Solar Snake cable tray, carrying PV cables from solar arrays to combiner boxes and inverters. It is also available with a strut mount system as well as many custom brackets to attach virtually any roof top ballasted component. Padding on base protects roof membranes.
* PATIO BLOCKS NOT SUPPLIED

Ballasted Roof Top Anchor

Snake Tray’s ballasted roof mount anchors use common cement block ballasts to support Solar Snake cable tray, carrying PV cables from solar arrays to combiner boxes and inverters. It is also available with a strut mount system as well as many custom brackets to attach virtually any roof top ballasted component. Padding on base protects roof membranes.
* PATIO BLOCKS NOT SUPPLIED

Kindorf Mount

Snake Tray’s ballasted roof mount anchors use common cement block ballasts to support Solar Snake cable tray, carrying PV cables from solar arrays to combiner boxes and inverters. It is also available with a strut mount system as well as many custom brackets to attach virtually any roof top ballasted component. Padding on base protects roof membranes.
* PATIO BLOCKS NOT SUPPLIED

Solar Snake Tray Covers for 90° Mounting

The 60-inch long covers give cabling an added layer of protection. Constructed of galvanized sheet steel. Air slots allow for ventilation.

Solar Snake Tray Covers for 180° Mounting

The 60-inch long covers give cabling an added layer of protection. Constructed of galvanized sheet steel. Air slots allow for ventilation.

Solar Snake Tray Covers for 180° Low Profile Mounting

The 60-inch long covers give cabling an added layer of protection. Constructed of galvanized sheet steel. Air slots allow for ventilation.

90° Cover for Solar Snake Tray

Covers give cabling an added layer of protection. Constructed of galvanized sheet steel. Air slots allow for ventilation.

CB-8

Tin plated grounding connector

CB-12-SS

Stainless Steel Connector Bolt

Solar Snake Tray for Fixed Tilt Arrays

Solar Snake Tray for Fixed Tilt Arrays – Double

Cable Turnout

Universal Inline Connector Bolt for Utility Solar Trays

Smaller size accommodates the smaller spines of utility solar trays. Provides a mechanical and a bonded electrical connection when joining tray sections to one another.

Solar Snap Snake Tray for Messenger Wire

This cable conveyance system suspends with messenger wire and offers a continuous support of cables.
• Attaches to messenger wire
• Multiple configurations available
• Finishes: SS/PC-GY

XX DENOTES RADIUS OF RING

Solar Snake Tray Air Separator

This is the ideal solution when carrying high voltage power from utility grade solar arrays by providing code compliant cable separation to eliminate the need to de-rate cables. This is the ideal solution when carrying high voltage power from utility grade solar arrays by providing code compliant cable separation to eliminate the need to de-rate cables.

• Suspends from messenger wire
• Multiple configurations available

RESI Box

Snake Tray’s structured media enclosures create a distribution point for AV, voice and data applications as well as providing a convenient consolidation point for wiring home runs from wall outlets. Available in 14″ and 28″ sizes to address the broad range of capacities for single family homes, MDUs, and light commercial applications. Snake Tray’s structured media enclosures support new and retrofit installations. Perforated back panel with multiple EKO’s. Manufactured from 20 GA galvanized steel, powder coated beveled screw on front panel.

RESI Box – 28″ L

Snake Tray’s Structured Media enclosures creates a distribution point for AV, Voice and Data applications as well as providing a convenient consolidation point for wiring home runs from wall outlets. Available in 14″ and 28″, sizes to address a broad range of capacities for single family homes, MDUs, and light commercial applications, Snake Tray’s Structured Media enclosures support new and retrofit installations. Perforated back panel with multiple EKO’s. Manufactured from 20 GA galvanized steel, Powder Coated beveled screw on front panel.

RESI Box with Removable Tray, Flush Cover

Snake Tray’s structured media enclosures create a distribution point for AV, Voice and Data applications as well as providing a convenient consolidation point for wiring home runs from wall outlets. Supports new and retrofit installations. Perforated and slotted back panel with multiple EKO’s. Manufactured from 20 GA galvanized steel, powder coated flush ventilated screw on front panel.

Hideaway Floor Enclosure

Features:
• This trim less, flush floor box provides a practical and non-intrusive solution for easy access to cables
• Unique lift-off section of the cover allows full access to cables and connector plates while a smaller, hinged trapdoor flips back to create a cable exit
• Sturdy steel cover is installed flush with the floor. The edging is less than 1/4″ wide and allows for multiple surfaces to be integrated within the cover. When the box is not in use, only the elegant, hand-mitered edge is visible

RESI Box with Beveled Plastic Cover

Recessed wall mounted enclosure with plexiglass window for storing wireless transmitters in dorm rooms, general office spaces and hospitality environments. It provides a secure 14″ wide by 28″ high space for equipment up to 3 ½” deep. Perforated back panel with multiple EKO’s. Manufactured from 20 GA galvanized steel, powder coated beveled screw on front panel.

Horizontal Surface Wall Mount Enclosure

Applications:

Designed for utility environments where surface mount is most practical.

Features:

• Secured locking cover for Secret Internet Protocol Router Network (SIPRNet) applications

Wall Mount Mini ONT Box, Surface Mount

Applications:
Designed for utility environments where surface mount is most practical.

Features:
Secured locking cover for Secret Internet Protocol Router Network (SIPRNet) applications

Wall Mount Mini ONT Box, Recessed Mount

Recessed wall mounted enclosure with flush mount cover . Offers a secure consolidation point for open offices, small horizontal closets, Mini ONT and multimedia installations. Use  in dorm rooms, general office spaces and hospitality environments.  Provides a secure 14”wide by 8″ high space for equipment up to 3 ½ ” deep.  Perforated back panel with multiple EKO’s. Manufactured from 20 GA galvanized steel.  Available with solid or ventilated screw on front panel.

Rectangular Consolidation Point Enclosure

Applications: Secure consolidation point for open offices, small horizontal closets, ONT and multimedia installations. Flexible mounting between studs in existing or new construction. Architecturally pleasing metal bezel with hinged door complete with vented louvers. Powder coated for seamless integration into any office environment.

Features:
• Multiple EKO’s on all four sides
• Easily mounts to 16″ OC studs
• Flush mounted lockable  louvered door
• Constructed from 16 GA  galvanized steel
• Perforated back panel for simple attachment of components
• Available with 2 gang utility  electrical box
• Available with Palusol®  fire-protection panels
• Pre-configured and  User-configurable versions

Square Consolidation Point Enclosure

Applications: Secure consolidation point for open offices, small horizontal closets, ONT and multimedia installations. Flexible mounting between studs in existing or new construction. Architecturally pleasing metal bezel with hinged door complete with vented louvers. Powder coated for seamless integration into any office environment.

Features:
• Multiple EKO’s on all four sides
• Easily mounts to 16” OC studs
• Flush mounted lockable louvered door
• Constructed from 16 GA galvanized steel
• Accepts multiple manufacturers Active Ethernet ONTs
• Available mounting bracket for up to 10 RJ45 modular connectors
• Available with 2 gang utility electrical box
• Available with Palusol®  fire-protection panels
• Available with Perforated back panels
• Pre-configured and  User-configurable versions

Recessed Remote Equipment Cabinet

Applications: Secure consolidation point for Distributed network equipment. Lessens the heat load and density in the Telecom Room (TR). Flexible mounting between studs in existing or new construction. Architecturally pleasing metal bezel with hinged door complete with vented louvers. Powder coated for seamless integration into any office environment.

Features:
• Multiple EKO’s on all four sides
• 6RU Rack space, Dual mount  optional
• Flush mounted lockable keyed pull latch lock
• Constructed from 16 GA  galvanized steel
• Vented bottom panel
• 10/32 ground studs (4)
• Available with 4 ½” cooling fan(s)
• Available with 4 gang utility electrical box
• Available with Palusol® fire-protection panels
• Available with Perforated or Plywood back panels
• Available with recessed bezel kit Pre-configured and User-configurable versions

Recessed Electronic Enclosure

Applications: Secure consolidation point for Distributed network equipment. Lessens the heat load and density in the Telecom Room (TR). Flexible mounting between studs in existing or new construction.  Architecturally pleasing metal bezel with hinged door complete with vented louvers.  Powder coated for seamless integration into any office environment.

Features:
• Multiple EKO’s on all four sides
• Up to 18RU Rack space, Door-mounted rack system
• Flush mounted lockable keyed pull latch lock
• Constructed from 16 GA galvanized steel
• Vented side and bottom panel
• 10/32 ground studs (4)
• Available with 4 ½” cooling fan(s)
• Available with 4 gang utility electrical box
• Available with Palusol® fire-protection panels
• Available with Perforated or Plywood back panels
• Available with recessed bezel kit Pre-configured and User-configurable versions

Fiber Cassette Module 110 Block CAT 6A

Applications: This fully assembled ceiling mount fiber Consolidation enclosure installs in 2’ x 2’, 2’ x 4’ and 2’ x 6’ drop ceilings.

Features:
• One (1) Leviton 288 Pair block with C4 clips
• One (1) Test Patch-Cord, 110 to RJ45
• Fiber mounting plate for two (2) MPO Cassettes, Lances for Velcro tie-down
• Third cassette shelf available
• Removable Latched door with two (2) keyed locks
• Sixteen (16) Trade Size EKO’s with #4404 Arlington Snap-In Grommets (included)
• Constructed from 16 GA galvanized steel with Nortek#P7RW124 White Peel powder Coat Finish, Other colors are available upon request
• Four point built-in support brackets for threaded rod or hangers
• Two (2) Ilsco-TA-6-S Ground lugs

Basic 2′ x 2′ Box Empty

Applications: This fully assembled ceiling mount enclosure installs in 2′ x 2′, 2′ x 4′ and 2′ x 6′ drop ceilings. This particular model has 6 RU of standard 19″ passive rack mountable space and is fitted with a horizontal cable slack manager. Lockable secure door has a capacity of over 50 pounds and can be customized to user specifications to accept other component structures. Cover opens safely with two built-in pneumatic cylinders.

Features:
• Lockable secure lid design
• Removable door mounted assembly for 19″rack mounted panels and active equipment
• Total of 6 RU rack mountable space
• Multiple knockout configurations available
• Simplified design reduces network down time and labor costs associated with MAC work
• Constructed from 16 GA galvanized steel or aluminum with customer specified powder coat finish available
• Multiple sizes available
• Four point built-in support brackets for threaded rod or hangers
• Additional bracket configurations available

Overhead Distribution Module (Non Powered)

Applications: This fully assembled ceiling mount enclosure installs in 2’ x 2’, 2’ x 4’ and 2’ x 6’ drop ceilings. 6 RU of standard 19” passive rack mountable space and is fitted with a horizontal cable slack manager. Door has a capacity of over 50 pounds and can be customized to user specifications to accept other component structures.

Features:
• Welded Corners
• Lockable secure cover design
• Removable door mounted assembly for 19”rack mounted panels and active equipment
• Total of 6 RU rack mountable space
• Adjustable ONT Shelf
• 2 ½” Knock Out for conduit
• Multiple knockout configurations available
• Cover opens safely with two built-in pneumatic cylinders
• Exhaust fan built into cover
• Constructed from 16 GA galvanized steel with customer specified powder coat finish available
• Multiple sizes available
• Four point built-in support brackets for threaded rod or hangers
• Additional bracket configurations available

Ceiling box

Overhead Distribution Module with Integrated Power Supply

Applications:This fully assembled ceiling mount enclosure with Integrated Power Supply installs in 2′ x 2′, 2′ x 4′ and 2′ x 6′ drop ceilings. 6 RU of standard 19″ passive rack mountable space and is fitted with a horizontal cable slack manager. Door has a capacity of over 50 pounds and can be customized to user specifications to accept other component structures.

Features:
• Integrated Power Supply
• Welded Corners
• Lockable secure cover design
• Removable door mounted assembly for 19″rack mounted panels and active equipment
• Total of 6 RU rack mountable space
• Adjustable ONT Shelf
• 2 ½” Knock Out for conduit
• Multiple knockout configurations available
• Cover opens safely with two built-in pneumatic cylinders
• Constructed from 16 GA galvanized steel
• Four point built-in support brackets for threaded rod or hangers
• Additional bracket configurations available
• Exhaust fan built into cover
• Door assisted gas struts
• Built in cable management
• Customized Solutions available

CM 708-SK-0647 - AC Power, 120V Power module with 7 NEMA 20A receptacles, 120V Exhaust Fan

CM 708-SK-0613 - DC Power, 750 Watt Power Supply, 120V Exhaust Fan

Basic 2′ x 4′ Box Empty

Applications: This fully assembled extra large ceiling mount enclosure installs in 2′ ceiling grid, measures 2′ x 4′. This particular model can be mounted with 12 RU of standard 19″passive rack mountable space and horizontal cable slack managers. Lockable secure door has a capacity of over 75 pounds and can be customized to user specifications to accept other component structures. Vented cover opens safely with two built-in pneumatic cylinders. Single lockable handle.

Features:
• Lockable secure lid design
• Can be fitted with 19″ rack mounted panels and active equipment with a total of 12 RU
• Simplified design reduces network down time and labor costs associated with MAC work
• Constructed from 16 GA galvanized steel or aluminum with customer specified powder coat finish available
• Multiple sizes available
• Eight point built-in support brackets for threaded rod or hangers
• Multiple knockout configurations

Ceiling Mounted Remote Equipment Cabinet

Applications: Secure consolidation point for Distributed network equipment. Lessens the heat load and density in the Telecom Room (TR). Flush mounted, white enclosure installs into a standard 2′ x 2′ grid ceiling. Architecturally pleasing metal bezel with hinged door complete with vented louvers. Powder coated for seamless integration into any office environment.

Features:
• Designed for Power, Data and Active AV Devices in the Ceiling
• Multiple Size EKO’s on all four sides
• Dual mounted 6RU Rack space for  active and passive equipment
• Flush mounted lockable keyed pull latch lock
• Constructed from 16 GA  galvanized steel
• Louvered removable hinged door
• Two gas assisted struts
• 6 point mounting brackets
• Available with up to 4 – 4 ½”  cooling fans and ducted hot air removal system
• Available with integrated power configurations both AC and DC
• Available with Palusol®  fire-protection panels
• Available with Acoustical foam for added sound mitigation
• Pre-configured and  User-configurable versions

Ultra Low Profile

Applications: The Ultra Thin floor box designed for extremely low profile floors incorporates both electrical and data into a 1 ½” deep shallow profile design. This design will work in all low profile raised floor applications. The unique completely flush mount split cover is an industry first! UL Listed and approved, this box will meet with all local codes and standards. Enclosure can be customized to meet customer’s specifications.

Features:
• Ultra slim design only occupies 1 ½” of height in an access floor
• Built-in data and power receptacles
• Customizable to meet a customer’s  specifications
• Flush mount design (eliminates  tripping hazards)
• Split hinged door
• UL Listed

Medium Profile Floor Box

Features:
• Designed to customer requirements for flexibility and durability
• Two separate compartments, one on each side of the unit
• Either or both can be used for power or data
• Multiple AV, and Data configurations are available
• Constructed from 16 GA galvanized steel
• Powder coated steel cover with 2-cable access points with recessed lid
• Designed to work with the 707 Series Snake Bus Power Distribution System

SNAKE TRAY CAN CUSTOM CONFIGURE YOUR MODULES TO FIT OUR SPECIFIC REQUIREMENTS

Snake Bus Recessed Floor Box with 3 Independent Protected Circuits

Features:
• Designed to customer requirements with up to 3 independent circuits and 12 keystone receptacles for data
• Designed to work in conjunction with 707 Series Snake Bus Power  Distribution
• Two separate compartments for data and power
• Steel cover with 2-cable access points and recessed lid will accept carpet

SNAKE TRAY CAN CUSTOM CONFIGURE YOUR MODULES TO FIT OUR SPECIFIC REQUIREMENTS

Circular Data & Power Reception Module for Access Floors

Snake Tray’s new all metal circular floor box for access floors offers a durable data and power reception module for workstations. Its optional integrated circuit breaker eliminates nuisance power interruptions to the rest of the office. Models are available with standard or custom configurations to meet the customer’s specifications. Available in powder coated or anodized finishes to coordinate with any architectural design.

Features:
• All metal design gives this floor box durability to last a life time
• Circular design allows for the module to be installed in the same size opening as standard air diffusers
• Two compartment all metal construction for both power and/or data connections
• Standard and custom electrical and data configurations available
• Optional current overload protection
• Available in powder coated or anodized finishes to coordinate with the architectural design of the building
• Made in the USA and 100% compliant with the Buy America Act

Zone Distribution Box II Under Floor use for Fiber & Copper

Applications: Fully assembled large capacity, secure enclosure that works within the confines of office raised floor tiles. Will accommodate up to 6 RU of standard 19″ rack mountable field terminated or pre-terminated connectivity solutions.

Features:
• Unique angled support allows for 2 more RU spaces with the same volume and footprint
• Built-in internal cable manager
• Secure locking hinged cover that allows for unimpeded working space
• Constructed from 16 GA galvanized steel powder coat finish available
• Available with standard knockouts or customer specified locations
• Accepts a variety of connectivity solutions

Low Profile Data Module with Custom Patch Panel

Applications: Fully assembled low profile, secure enclosure that works within the confines of office raised floor tiles. Includes a variety of customer dictated working options that will accommodate up to 4 RU of standard 19″ rack mountable field terminated or pre-terminated connectivity solutions.

Features:
• Built-in internal cable manager
• Secure locking hinged cover that allows for unimpeded work space
• Constructed from 16 GA galvanized steel with customer specified powder coat finish available
• Available with standard knockouts or  customer specified locations
• Accepts a variety of connectivity solutions
• Multiple 2 and 4 RU custom connectivity mounting plates are available

Zone Distribution Box Empty – Base Box

Applications: Under-floor zone cabling consolidation enclosure. The in-floor enclosure saves valuable real estate by providing a secure solution under the floor which relieves congestion on racks and cabinets for installing network equipment.

Features:
• Lockable secure lid design
• Multiple knockout configurations available, edge protected cable access points
• Constructed from 16 GA galvanized steel with customer specified powder coat finish available
• Custom configurations are available

Fiber Optic Breakout System with Copper Channels for Access Floors

Applications: This cylindrical raised floor distribution station is designed to customer’s specific requirements for a complete pre-configured plug-n-play network terminal for copper and fiber. Inbound 12 strand MPO breaks into 6 channels to SC/LC duplex connectors as well as four category 6/6A channels.

Features:
• Designed in conjunction with architectural firms, this cylindrical module incorporates both fiber and copper telecommunication interfaces in a single compact design specifically for raised floor installations
• Modular telecommunications cabling system shall ensure efficient voice and data signal transmission with trueplug-and-play modularity
• The keyed circular 16 GA galvanized steel cover will match typical in-floor air diffusers for architectural symmetry
• The body of the module is constructed from 16 GA aluminum

Ultra Low Profile Data Distribution Box

Applications: The Ultra Thin floor box designed for extremely low profile floors. 1 RU of standard 19″ passive rack mountable space and horizontal cable slack managers. Lockable secure door.

Features:
• Ultra slim design only occupies 2 ¾” of height in an access floor
• Removable locking solid cover
• Device brackets are movable to accommodate different size components
• Eight (8) 1.28” x 3.19” openings, 4 per side, for easy cable entry
• Built in strain relief points for Velcro straps
• Dimpled floor stand offs
• Standard Black Powder Coat, other colors are available upon request

Zone Distribution Box – High Density Fiber

Applications: The in-floor Fiber Cassette enclosure is an ideal zone cabling solution serving as a consolidation point or zone distribution area. The in-floor enclosure saves valuable real estate by providing a secure solution under the floor which relieves congestion on racks and cabinets for installing network equipment. The enclosure can be used along with up to 14 pre-terminated fiber cassettes as a ZDA for instant data center installations and reconfigurations. The innovative lift-out tray design allows for easy cable configurations, minimizes cable pinching and will maintain proper bend radius for cable.

Features:
• Lockable secure lid design
• Fold out platform allows for accessibility to 14 fiber cassettes
• Multiple knockout configurations available, edge protected cable access points
• 14 MPO – Input/output 84 channels of SC Duplexes
• Simplified design reduces network downtime and labor costs associated with MAC work
• Constructed from 16 GA galvanized steel with customer specified powder coat  finish available
• Multiple sizes available

Under Floor Data Distribution System

Features:
• Designed to a customer’s specific requirements to accommodate the need for specialized fire code requirements
• Designed to be used with Series 652 Snake Way Secured Pathway
• 8 RU of 19″ rack mountable space
• Removable locking cover
• Constructed from 16 GA galvanized steel with customer specified powder coat finish available
• Custom knockout configurations

Mega Snake® Air Separator

This auxiliary component attaches directly to the Mega Snake’s mounting rail to provide code compliant separation between high ampacity conductors. This separation system provides the spacing that will allow the full ampacity rating of cables in accordance with the NEC. Can be configured to the customer’s specific cable schedule.

FINISHES: STAINLESS STEEL (SS), POWDER COATED GRAY (PC-GY)

Splice Kit

Splice kit maintains a continuous electrical and mechanical bond throughout the Mega Snake system.

FINISH: STAINLESS STEEL (SS)

Size Adapters

Transition from one size Mega Snake to another.

FINISHES: STAINLESS STEEL (SS), POWDER COATED GRAY (PC)

TEST: Snake Nuts Threaded Rod Fastener Accessory

Applications: Lorem ipsum…

Solar Straight Sections

Part Number	Loading Dimensions	Cable Capacity	Cut Sheet	BIM
CM 801-4-6-10	4" x 6" x 10'	250
CM 801-2-12-10	2" x 12" x 10'	220
CM 801-4-12-10	4" x 12" x 10'	440
CM 801-6-12-10	6" x 12" x 10'	670
CM 801-2-18-10	2" x 18" x 10'	375
CM 801-4-18-10	4" x 18" x 10'	750
CM 801-6-18-10	6" x 18" x 10'	1,100
CM 801-2-24-10	2" x 24" x 10'	490
CM 801-4-24-10	4" x 24" x 10'	980
CM 801-6-24-10	6" x 24" x 10'	1,470

FOR BEST RESULTS IT IS RECOMMENDED THAT MEGA SNAKE BE SUPPORTED EVERY (5) FIVE FEET

FINISHES: STAINLESS STEEL (SS), POWDER COATED (PC)

45° Turns

FINISHES: STAINLESS STEEL (SS), POWDER COATED GRAY (PC)

90° Turns

Part Number	Part Size	Cut Sheet	BIM
CM 801-2-6-90	2" D x 6" W 90° Turn
CM 801-4-6-90	4" D x 6" W 90° Turn
CM 801-2-12-90	2" D x 12" W 90° Turn
CM 801-4-12-90	4" D x 12" W 90° Turn
CM 801-6-12-90	6" D x 12" W 90° Turn
CM 801-2-18-90	2" D x 18" W 90° Turn
CM 801-4-18-90	4" D x 18" W 90° Turn
CM 801-6-18-90	6" D x 18" W 90° Turn
CM 801-2-24-90	2" D x 24" W 90° Turn
CM 801-4-24-90	4" D x 24" W 90° Turn
CM 801-6-24-90	6" D x 24" W 90° Turn

FINISHES: STAINLESS STEEL (SS), POWDER COATED GRAY (PC)

TEE Section

Part Number	Part Size	Description	Cut Sheet	BIM
CM 801-2-6-T	2" D x 6" W T-Section
CM 801-4-6-T	4" D x 6" W T-Section
CM 801-2-12-T	2" D x 12" W T-Section
CM 801-4-12-T	4" D x 12" W T-Section
CM 801-6-12-T	6" D x 12" W T-Section
CM 801-2-18-T	2" D x 18" W T-Section
CM 801-4-18-T	4" D x 18" W T-Section
CM 801-6-18-T	6" D x 18" W T-Section
CM 801-2-24-T	2" D x 24" W T-Section
CM 801-4-24-T	4" D x 24" W T-Section
CM 801-6-24-T	6" D x 24" W T-Section

FINISHES: STAINLESS STEEL (SS), POWDER COATED GRAY (PC)

Crossing Grid

Part Number	Part Size	Cut Sheet	BIM
CM 801-2-6-CG	2" D x 6" W 4-Way Crossing Grid
CM 801-4-6-CG	4" D x 6" W 4-Way Crossing Grid
CM 801-2-12-CG	2" D x 12" W 4-Way Crossing Grid
CM 801-4-12-CG	4" D x 12" W 4-Way Crossing Grid
CM 801-6-12-CG	6" D x 12" W 4-Way Crossing Grid
CM 801-2-18-CG	2" D x 18" W 4-Way Crossing Grid
CM 801-4-18-CG	4" D x 18" W 4-Way Crossing Grid
CM 801-6-18-CG	6" D x 18" W 4-Way Crossing Grid
CM 801-2-24-CG	2" D x 24" W 4-Way Crossing Grid
CM 801-4-24-CG	4" D x 24" W 4-Way Crossing Grid
CM 801-6-24-CG	6" D x 24" W 4-Way Crossing Grid

FINISHES: STAINLESS STEEL (SS), POWDER COATED GRAY (PC)

Passive Optical Network Module for Under Desks

New under desk ONT mounting enclosure that can house most current ONTs on the market. This PON module will provide space for the service loop and the auxiliary power unit.

Triangle Wall Bracket

Part Number	Cut Sheet
CM 610-653-XX-WBN

• Assembly Required
• Available in 6", 12", 18" and 24" tray width

XX DENOTES WIDTH OF TRAY

Fiber and Copper SCIF Secured Module

Applications: This secure box is designed to house sensitive connections under raised floors. Primarily used in SCIF and other secure venues, this box has a sliding removable cover with integrated padlock hasp. The unique design makes it impossible for entrance unless physically unlocked, keeping out all unwanted personnel. All seams are electronically welded for a completely enclosed and secure module.

Features:
• Lockable secure lid design with pad lock hasp
• Constructed from 16 GA galvanized steel with customer specified powder coat finish available
• Completely welded seams
• Available with or without knockouts
• Complete with built-in cable management and fiber cassette mounting structure
• 110 block mounting positions
• Custom configurations are available

Concrete Anchor for 501 Series Wall Snake

Stud type anchor design allows easy through-type fastenings and can be set in bottomless hole. Pre-assembled anchor ensures easy and fast installation. Anchor size is same as drill bit size for easy installation. Comprehensive testing to ensure high performance in block, masonry and concrete base materials. Special design prevents the anchors from spinning in the hole. Anchor won’t drop out while setting overhead.

Reprinted from information and permission received from the Hilti company

Snake X NEMA 4X Enclosures

SnakeX Enclosure Systems provide superior protection in harsh indoor and outdoor environments for electrical and electronic equipment. Meeting NEMA 4X specifications ensures protection against corrosion, hose-directed water, splashing, rain and ice.

Features:
• Enclosures can be wall or floor mounted
• Hinge or lift off cover
• Continuous hinge (removable hinge pin)
• Wallmounting flange / foot
• Watertight gasket
• Stainless steel clamps and screws
• Four #10-32 weld nuts for optional mounting pan
• Grounding studs on inside of box and cover
• Captive clamp screws
• Stainless steel mounting panels
• Terminal blocks or other component assembly
• Quick release latches
• Custom sizes
• Stainless steel breather / drain
• NEMA Type 3, 3R, 4, 4X, 12, and 13
• UL50
• cULus Listed
• 14 gauge / Type 304 or 316 stainless steel
• Stainless steel hardware

For a complete part number list download Snake X NEMA 4X Enclosures Systems.pdf

Retaining Post Kit

Ceiling Support Bracket

• Sold individually
• For mounting threaded rod to flat overhead or ceiling surface
• Mounting hardware not included

Vertical Support Foot Kit

Vertical Wall Bracket

Snake-Loc Cable Hanger for Messenger Wire

Quickly top load the PV cables directly into this light weight double pocket hanger with a squeeze lock feature that quickly attaches onto the messenger wire to secure the string cables.  Significantly reduces time and labor by requiring no tools. Hanger stays in place on the messenger wire. Available in powder coat or stainless steel.

String and Feeder Cable Hanger

As utility grade systems grow in size so does the size of string cables. Utilize Snake Tray’s tree hanger with a capacity of up to a quantity of 16, 750 Kcmil cables per hanger. Ideal for larger scale projects and can even be stacked to create a modular system to further increase capacity.  The side loading feature offers quick access to installing and maintaining cables for reduced labor costs. No trenching for minimal ground disturbance. The large capacity loops will handle any size of cable bundle easily and effectively.

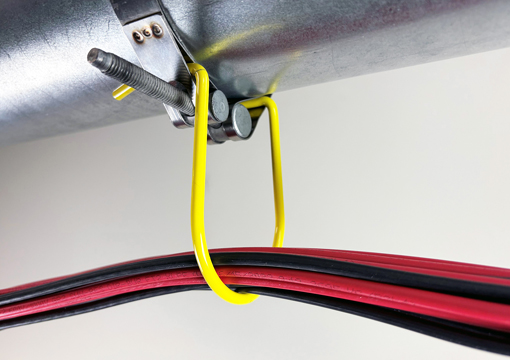

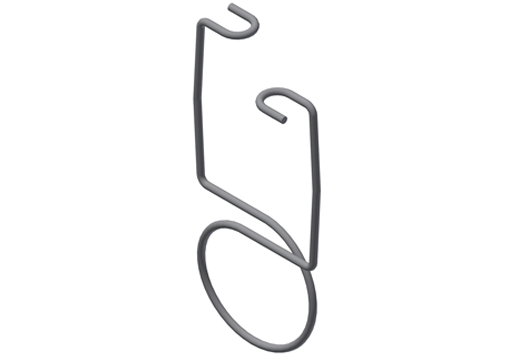

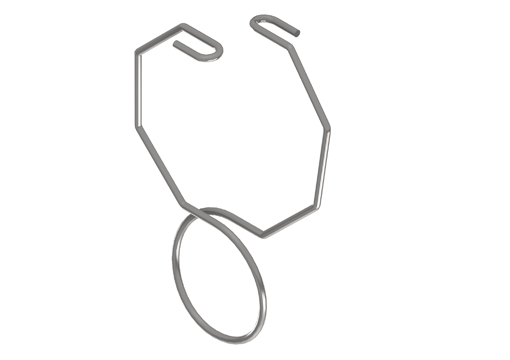

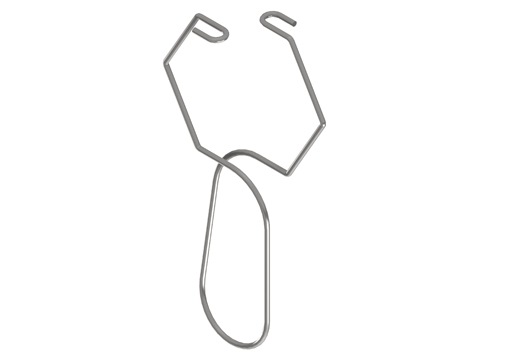

Torque Tube Cable Hanger

Tube hangers point in the right direction and are designed with innovative features that provide a dual round section to manage cable as trackers move daily up to 67 degrees following the sun from east to west. Our hangers can be custom designed to fit any style of fixed tilt or tracker for a secure fit over any style torque tube or fixed tilt structure.

Solar Torque Tube Cable Hanger

Quick snap on torque tube hanger with single pocket for managing cables. Powder coat or stainless steel. Available in multiple sizes according to customer specifications.

Solar Click-n-Go Cable Hanger – Double

One Cable Hanger That Manages All the Cables For Endless Possibilities Over Any Terrain!
Snake Tray’s new cable hanger designed with double cavities offers endless possibilities to manage cables up to 1250 Kcmil over a variety of terrain. Constructed of lightweight, eco-friendly rugged polycarbonate and ergonomically designed, the hanger installs quickly to reduce time and labor costs by 50% by doing the job of multiple hangers. Move all your East/West cables with one cable hanger!

• Accommodates any size cable up to 1250 Kcmil
• Holds up to 300 Lbs.
• Ultra-narrow profile, light weight and corrosion free
• Easy and fast installation reduces labor costs
• Safe installation through special click closure system
• Lightweight, eco-friendly, rugged polycarbonate construction with up to 30 years of UV protection
• Exceptional reliability in extreme weather conditions
• Compliments the Solar Snake Max XL system by feeding the cables East/West

Solar Click-n-Go Cable Hanger – Single

Snake Tray® Solar Click-n-Go Cable Hanger is deceivingly simple in appearance, but actually is an integrated cable routing system for two 500 Kcmil cables, one ground cable and a ¼” messenger wire.A lower profile than alternative products, Solar Click-n-Go Cable Hanger reduces the chance of damage to the conductors and provides for a generous maximum load weight of 65 lbs. The unique design is suitable for services carrying #10 string wires but also strong enough for more heavy-duty cables. Holding up to two 500 Kcmil cables with no need to de-rate.

• Accommodates two 500 Kcmil cables
• Holds up to 65 lbs.
• Ultra-narrow profile, light weight and corrosion free
• Easy and fast installation reduces labor costs
• Safe installation through special click closure system
• Lightweight, eco-friendly, rugged polycarbonate construction with up to 30 years of UV protection
• Exceptional reliability in extreme weather conditions
• Compliments the Solar Snake Max XL system by feeding the cables East/West

Moveable Cross Member

X DENOTES WIDTH OF TRAY

Snake Hook

Snake hook for mounting to any type of purlin hook specifically designed to mount onto hand bendable Solar Snake Tray in seconds. Ideal for car parks and ground mount installations.

Straight Sections

Part Number	Loading Dimensions	Cable Capacity	Cut Sheet	BIM
CM 801-2-6-10	2" x 6" x 10'	125
CM 801-4-6-10	4" x 6" x 10'	250
CM 801-6-6-10	6" x 6" x 10'	375
CM 801-2-8-10	2" x 8" x 10'	165
CM 801-4-8-10	4" x 8" x 10'	330
CM 801-6-8-10	6" x 8" x 10'	490
CM 801-2-12-10	2" x 12" x 10'	250
CM 801-4-12-10	4" x 12" x 10'	490
CM 801-6-12-10	6" x 12" x 10'	735
CM 801-2-18-10	2" x 18" x 10'	375
CM 801-4-18-10	4" x 18" x 10'	735
CM 801-6-18-10	6" x 18" x 10'	1,100
CM 801-2-24-10	2" x 24" x 10'	490
CM 801-4-24-10	4" x 24" x 10'	980
CM 801-6-24-10	6" x 24" x 10'	1,470

FOR BEST RESULTS IT IS RECOMMENDED THAT MEGA SNAKE BE SUPPORTED EVERY (5) FIVE FEET

THESE PRODUCTS ARE MANUFACTURED WITH CENTER SUPPORT RAIL FOR CENTER HANGING OPTIONS.

CABLE CAPACITY BASED ON 50% FILL AS PER NEC ARTICLE 392.9B 0.25 OD
FINISHES: STAINLESS STEEL (SS), POWDER COATED (PC)

30° Turns

* THESE PRODUCTS ARE MANUFACTURED WITH CENTER SUPPORT RAIL.

CABLE CAPACITY BASED ON 50% FILL AS PER NEC ARTICLE 392.9B 0.25 OD
FINISHES: STAINLESS STEEL (SS), POWDER COATED (PC)

45° Turns

Part Number	Part Size	Cut Sheet	BIM
CM 801-2-6-45	2" D x 6" W 45° Turn
CM 801-4-6-45	4" D x 6" W 45° Turn
CM 801-2-12-45 *	2" D x 12" W 45° Turn
CM 801-4-12-45 *	4" D x 12" W 45° Turn
CM 801-6-12-45 *	6" D x 12" W 45° Turn
CM 801-2-18-45	2" D x 18" W 45° Turn
CM 801-4-18-45	4" D x 18" W 45° Turn
CM 801-6-18-45	6" D x 18" W 45° Turn
CM 801-2-24-45	2" D x 24" W 45° Turn
CM 801-4-24-45	4" D x 24" W 45° Turn
CM 801-6-24-45	6" D x 24" W 45° Turn

* THESE PRODUCTS ARE MANUFACTURED WITH CENTER SUPPORT RAIL.

CABLE CAPACITY BASED ON 50% FILL AS PER NEC ARTICLE 392.9B 0.25 OD
FINISHES: STAINLESS STEEL (SS), POWDER COATED (PC)

90° Turns

Part Number	Part Size	Cut Sheet	BIM
CM 801-2-6-90	2" D x 6" W 90° Turn
CM 801-4-6-90	4" D x 6" W 90° Turn
CM 801-2-12-90 *	2" D x 12" W 90° Turn
CM 801-4-12-90 *	4" D x 12" W 90° Turn
CM 801-6-12-90 *	6" D x 12" W 90° Turn
CM 801-2-18-90	2" D x 18" W 90° Turn
CM 801-4-18-90	4" D x 18" W 90° Turn
CM 801-6-18-90	6" D x 18" W 90° Turn
CM 801-2-24-90	2" D x 24" W 90° Turn
CM 801-4-24-90	4" D x 24" W 90° Turn
CM 801-6-24-90	6" D x 24" W 90° Turn

* THESE PRODUCTS ARE MANUFACTURED WITH CENTER SUPPORT RAIL.

CABLE CAPACITY BASED ON 50% FILL AS PER NEC ARTICLE 392.9B 0.25 OD
FINISHES: STAINLESS STEEL (SS), POWDER COATED (PC).

TEE Section

Part Number	Part Size	Cut Sheet	BIM
CM 801-2-6-T	2" D x 6" W TEE Section
CM 801-4-6-T	4" D x 6" W TEE Section
CM 801-2-12-T *	2" D x 12" W TEE Section
CM 801-4-12-T *	4" D x 12" W TEE Section
CM 801-6-12-T *	6" D x 12" W TEE Section
CM 801-2-18-T	2" D x 18" W TEE Section
CM 801-4-18-T	4" D x 18" W TEE Section
CM 801-6-18-T	6" D x 18" W TEE Section
CM 801-2-24-T	2" D x 24" W TEE Section
CM 801-4-24-T	4" D x 24" W TEE Section
CM 801-6-24-T	6" D x 24" W TEE Section

* THESE PRODUCTS ARE MANUFACTURED WITH CENTER SUPPORT RAIL.

CABLE CAPACITY BASED ON 50% FILL AS PER NEC ARTICLE 392.9B 0.25 OD
FINISHES: STAINLESS STEEL (SS), POWDER COATED (PC)

Crossing Grid

Part Number	Part Size	Cut Sheet	BIM
CM 801-2-6-CG	2" D x 6" W 4-Way Crossing Grid
CM 801-4-6-CG	4" D x 6" W 4-Way Crossing Grid
CM 801-2-12-CG *	2" D x 12" W 4-Way Crossing Grid
CM 801-4-12-CG *	4" D x 12" W 4-Way Crossing Grid
CM 801-6-12-CG *	6" D x 12" W 4-Way Crossing Grid
CM 801-2-18-CG	2" D x 18" W 4-Way Crossing Grid
CM 801-4-18-CG	4" D x 18" W 4-Way Crossing Grid
CM 801-6-18-CG	6" D x 18" W 4-Way Crossing Grid
CM 801-2-24-CG	2" D x 24" W 4-Way Crossing Grid
CM 801-4-24-CG	4" D x 24" W 4-Way Crossing Grid
CM 801-6-24-CG	6" D x 24" W 4-Way Crossing Grid

* THESE PRODUCTS ARE MANUFACTURED WITH CENTER SUPPORT RAIL.

CABLE CAPACITY BASED ON 50% FILL AS PER NEC ARTICLE 392.9B 0.25 OD
FINISHES: STAINLESS STEEL (SS), POWDER COATED (PC)

Consolidation Box

Snake Tray offers several styles of floor boxes that can be used under raised access floors. Raised floor enclosures are placed under or in a single 2′ x 2′ floor tile and come with an integrated cover. Snake Tray also offers various MUTOA style floor boxes for the workspace.

Features:
• Lockable secure lid design available
• Snake Bus compatible
• Built in cable management
• Brackets (included with most models) for attachment to raised floor support pedestals
• Multiple styles to suit your equipment mounting needs
• UL Listed

Solar Snake Charmer

This is the long-awaited solution for inspector’s request to get connectors and cables out of water and snow on rooftops. Snake Charmer snaps into place under the panel to carry connectors safely and securely at the rear of the panel. No tools required.
